Detailed Product Description
ATC woodworking machine NK200 controlling JCUT-25H Wood cnc router
Updated Ncstudio/ LNC controlling (option)
8 tool number
ATC/dust collector/ servo motor/ LNC controlling JCUT-25H Wood cnc router
CNC Wood Working Machine: JCUT-25H (51''x98'')
Features: vacuum table, dust collector, Servo motor
The number of knife: 10pcs/8pcs/6pcs (option)
1) Machine body: whole steel structure
2) Guideway: XYZ-axis use linear guideway
3) Driving mode: gear
4) Work dimensions: 1300mm x 2500mm x 200mm
5) Body dimensions: 2000mm x 3200mm x 1800mm
6) Z-axis working area: 200mm
7) Max. Speed: 60000mm/min
8) Working speed: 0-30000mm/min
9) Mechanical precision: 0.025 mm
10) Software: type 3 software, Artcut software, Artcam software
11) Max. Power consumption: 6kW
12) Power source: 380AC

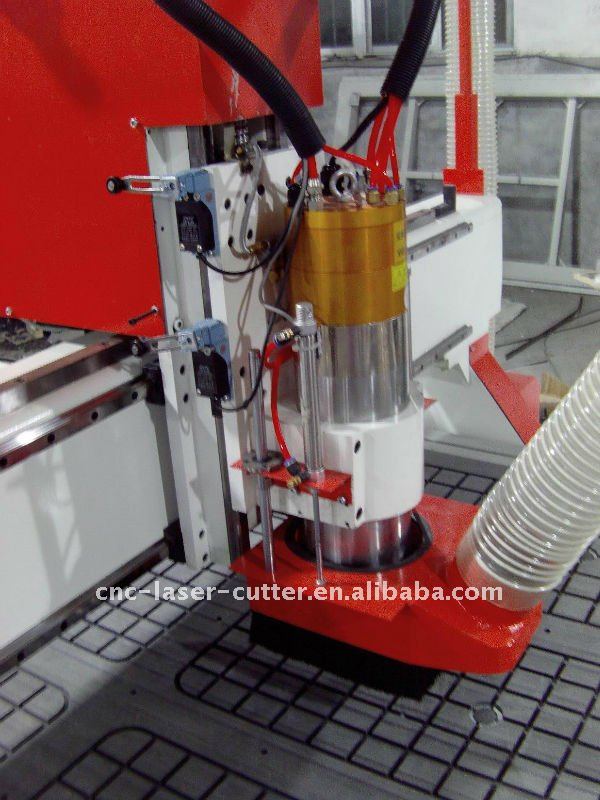

13) Spindle: 4.5KW water cooling spindle
14) Spindle speed: 0 - 18000rpm
15) Control system: Updated Ncstudio / LNC Precision System Control (Taiwan Baoyuan)
16) Command: G code, HPGL
17) Running circumstance temperature: 0 - 45 ° C
18) Relative humidity: 30% - 75%
19) Pack dimensions: 2600 x 3500 x 1980mm
20) Net weight: 1800kg
21) Gross weight: 2100kg
Please kindly tell us your engraving or cutting materials, and materials’ size.
Then we can quickly check and recommend to you the right machine with right working area.
We send below parts for free:
Software in CD, Controlling Card (PCI card), Water Tank, Water Pump, Engraving Tools, Data Wire, Power Line, Brush, Spanner and Clamp.
The optional accessories:
1. Rotary axis
----For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials’ length and diameter. Then we can add right rotary axis to the machine.
2. Water cycling system (water sink on the working table)
----For engraving on stone or metal materials. It is used to down the spindle’s high temperature.
3. Vacuum table (contain vacuum pump and vacuum pipes)
----For fixing the materials on the working table, especially for bigger working table.
After added vacuum table, the voltage will need to be 3 phase/380V.
4. Dust collector (contain dust collector pump and dust collector pipes)
----For sucking away the dusts, such as wood dusks and so on.
5. DSP controlling system
----USB interface, 128MB flash memory
6. lubricating system
We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.
One year for machine
